JVC RX-950V - Stereo Receiver

---

JVC RX-950V BASIC SPECS

Tuning range: FM, MW

Power output: 120 watts per channel into 8Ω (stereo)

Frequency response: 5Hz to 50kHz

Total harmonic distortion: 0.007%

Damping factor: 45

Input sensitivity: 0.25mV (MC), 2.5mV (MM), 230mV (line)

Signal to noise ratio: 80dB (MM), 100dB (line)

Output: 230mV (line)

Video Connections: composite

Dimensions: 435 x 128.5 x 381mm

Weight: 10.4kg

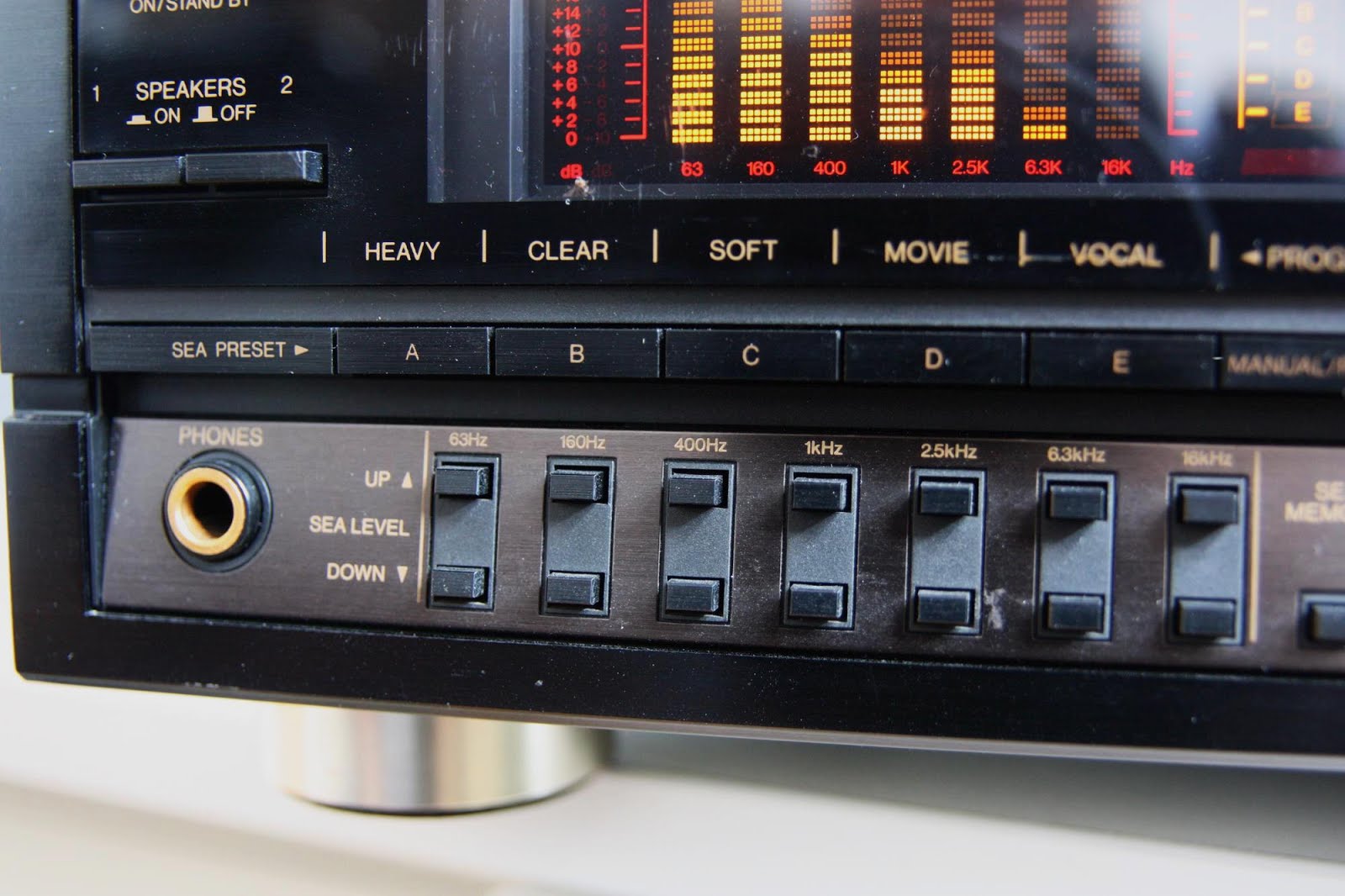

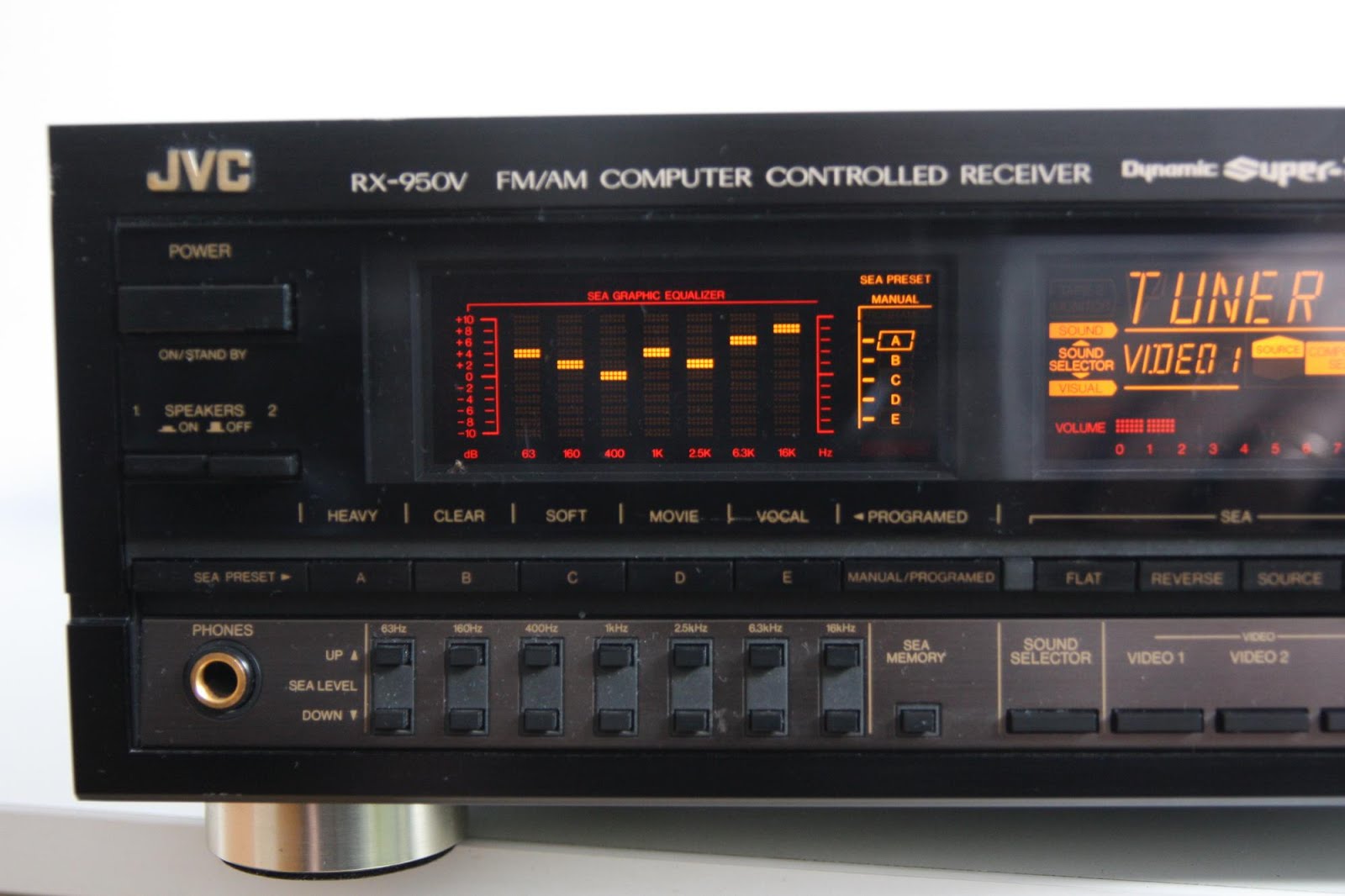

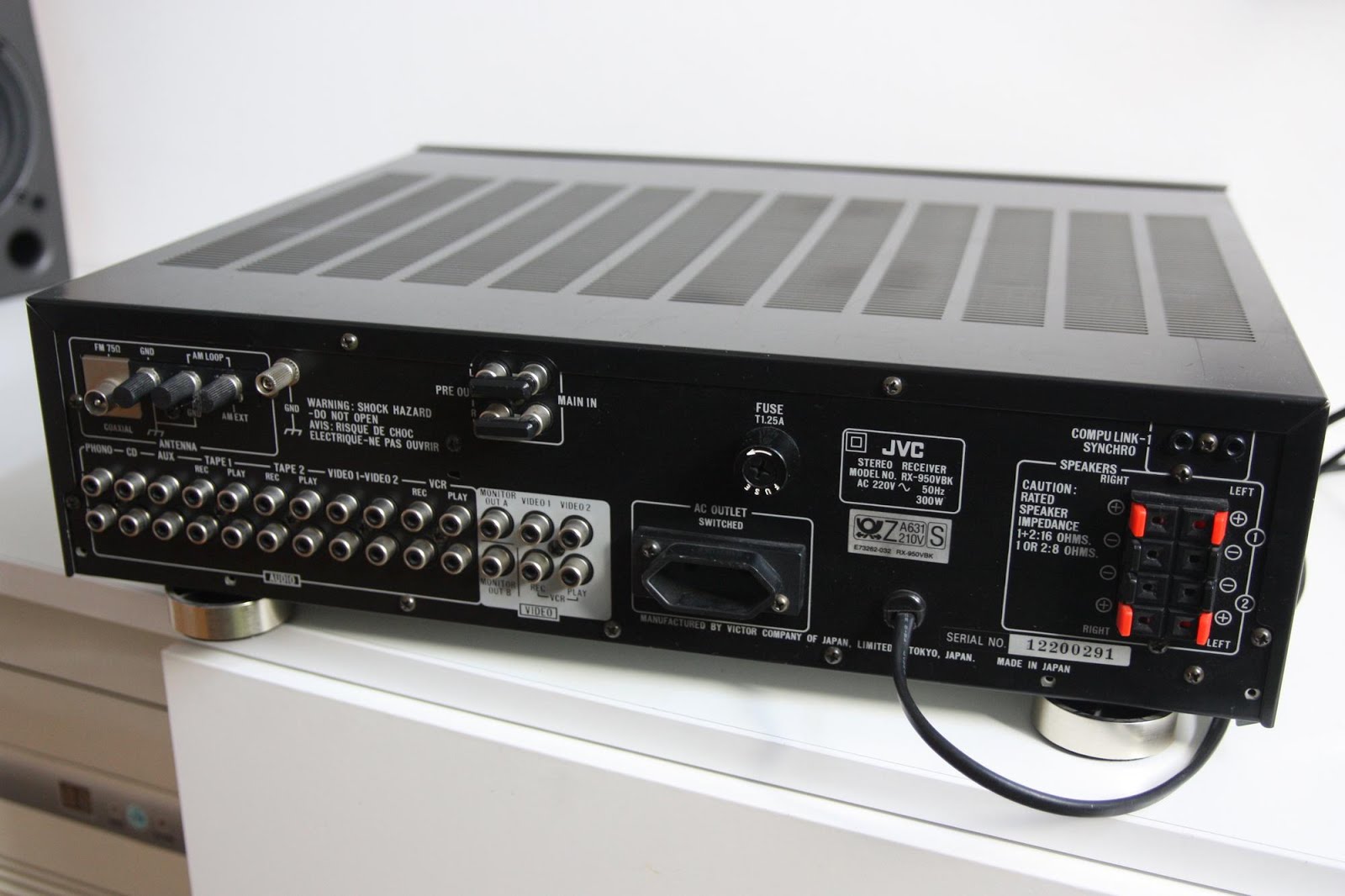

CLICK ON THUMBNAIL TO ENLARGE PICTURE
