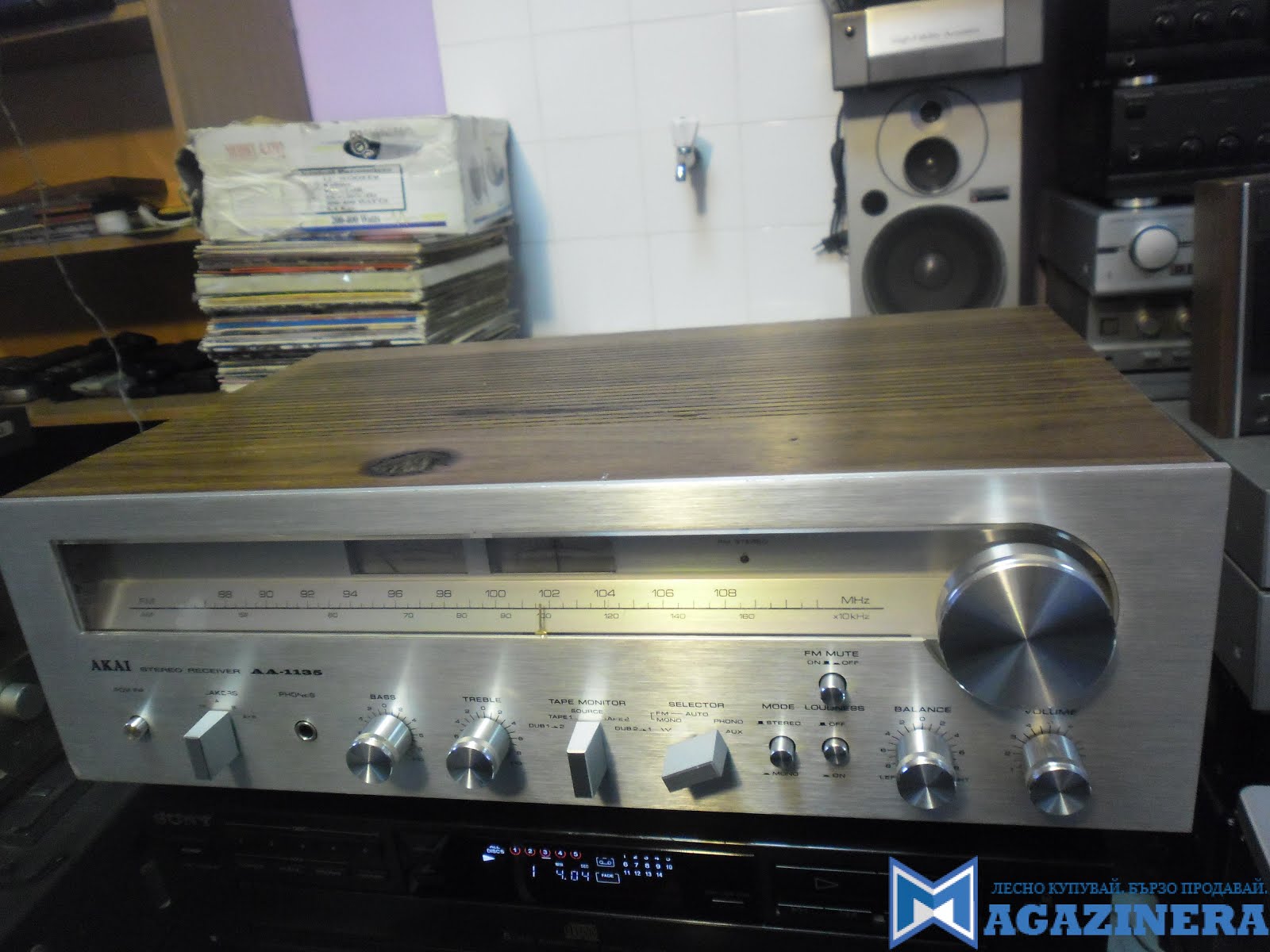

Akai AA-1135 BASIC SPECS
Tuning range: FM, MW
Power output: 35 watts per channel into 8Ω (stereo)
Frequency response: 6Hz to 70kHz
Total harmonic distortion: 0.2%
Damping factor: 30
Input sensitivity: 3mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 80dB (MM), 90dB (line)
Channel separation: 55dB (MM)
Output: 150mV (line), 30mV (DIN)
Speaker load impedance: 4Ω to 16Ω
Semiconductors: 4 x IC, 1 x FET, 37 x transistors, 20 x diodes
Dimensions: 480 x 155 x 345mm
Weight: 10.8kg
