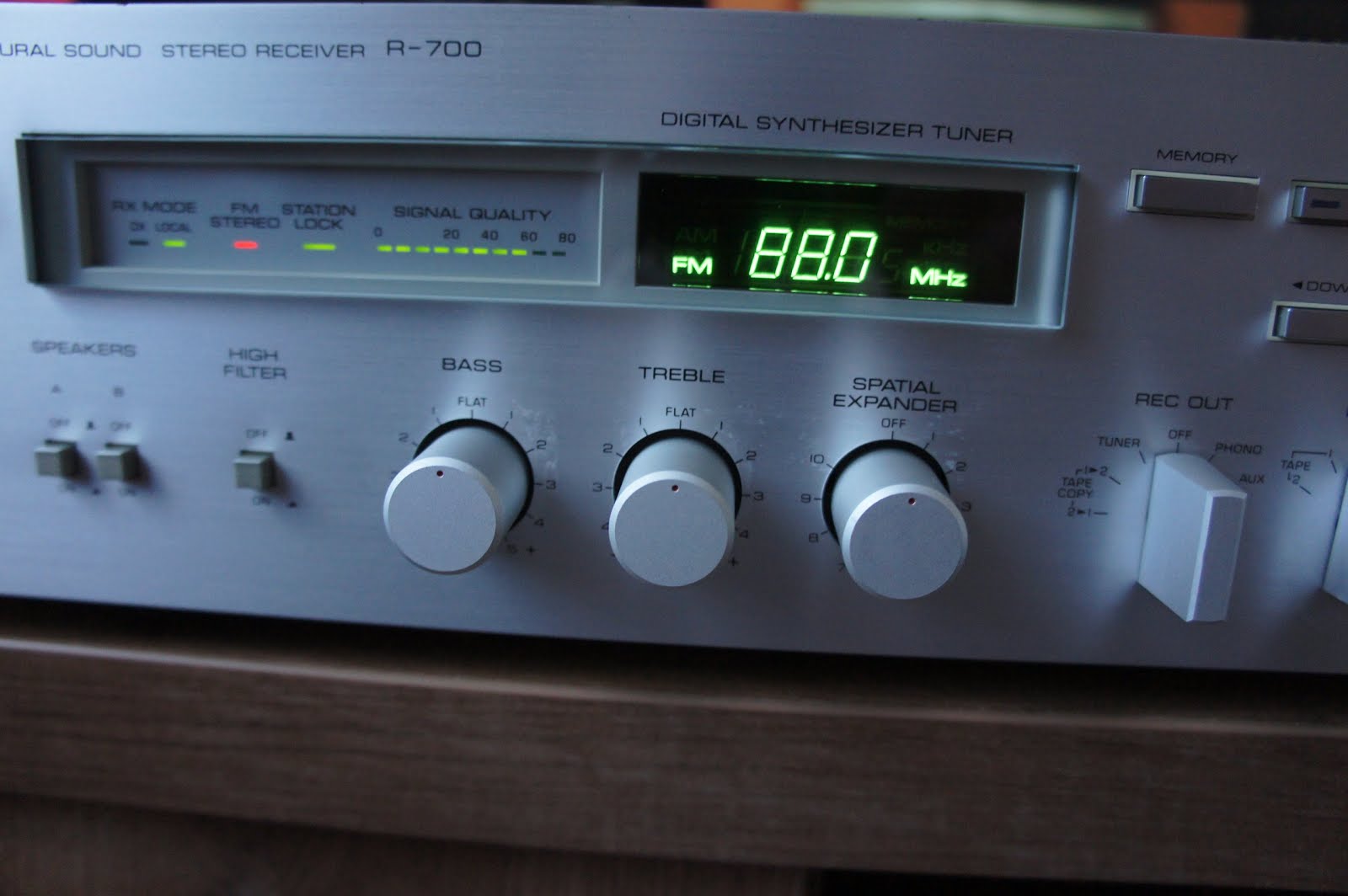

Yamaha R-700 BASIC SPECS
Tuning range: FM, MW
Power output: 50 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 100kHz
Total harmonic distortion: 0.005%
Damping factor: 40
Input sensitivity: 2.5mV (MM), 120mV (line)
Signal to noise ratio: 85dB (MM), 100dB (line)
Channel separation: 53dB (MM), 53dB (line)
Output: 120mV (line)
Semiconductors: 20 x IC, 3 x FET, 42 x transistors, 31 x diodes, 14 x LED
Dimensions: 480 x 122 x 337mm
Weight: 9kg
Year: 1981
