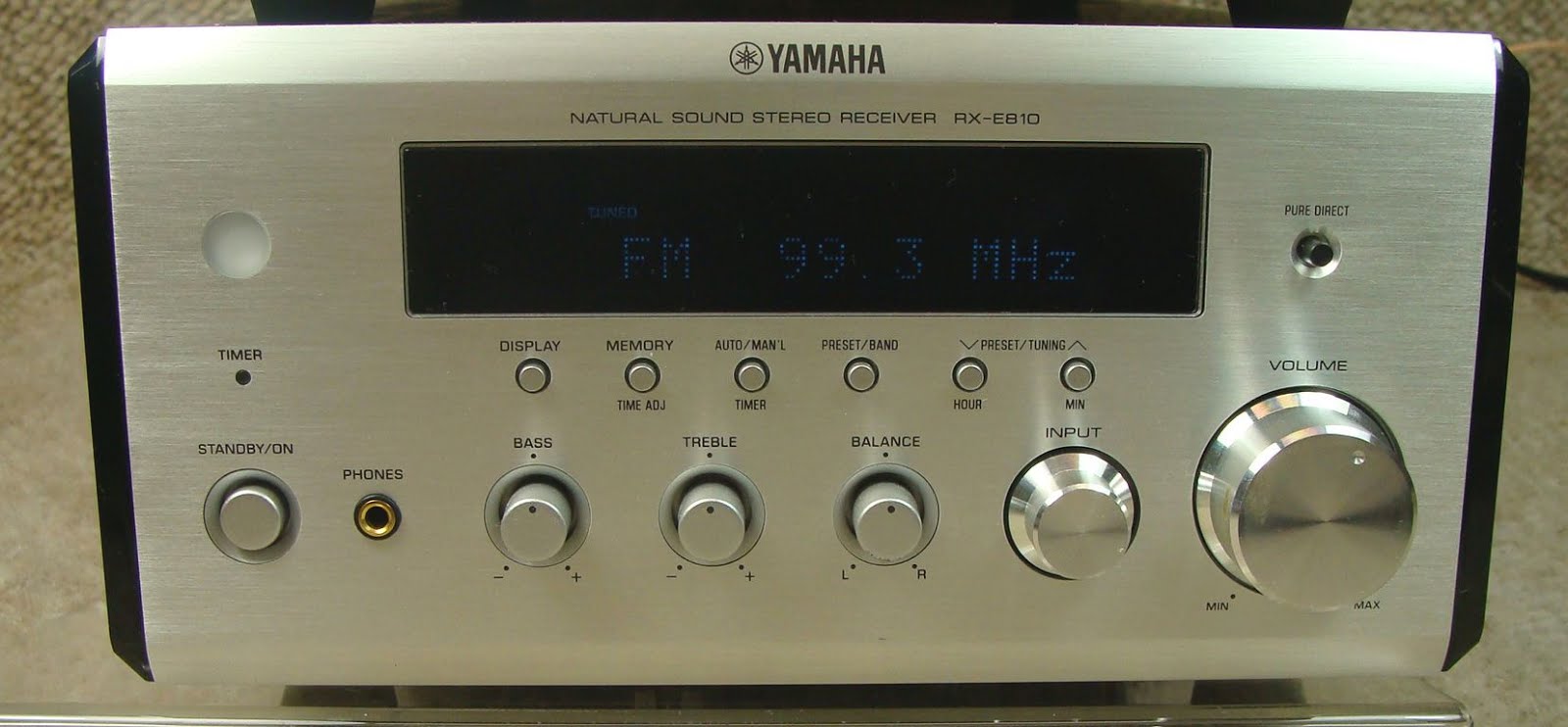

Yamaha RX-E810 BASIC SPECS
Tuning range: FM, MW
Power output: 40 watts per channel into 6Ω (stereo)
Frequency response: 20Hz to 20kHz
Total harmonic distortion: 0.04%
Damping factor: 60
Input sensitivity: 150mV (line)
Signal to noise ratio: 93dB (line)
Channel separation: 45dB (line)
Output: 150mV (line), 2V (Pre out)
Speaker load impedance: 6Ω (minimum)
Dimensions: 215 x 108 x 382mm
Weight: 5.7kg
Finish: gold, black, silver
Accessories: remote control
Year: 2006
