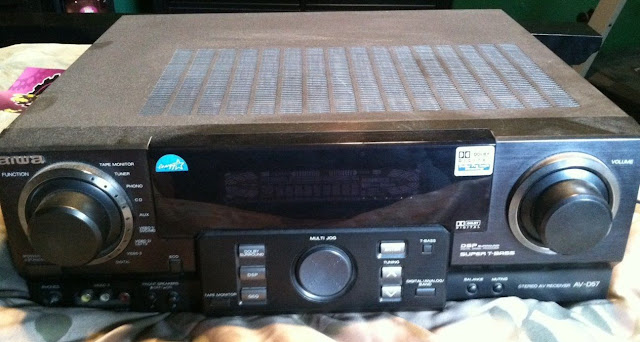

Aiwa AV-D57 - Stereo Receiver





CLICK ON THUMBNAIL TO ENLARGE PICTURE



Aiwa AV-D57 BASIC SPECS

No data

Aiwa AV-D57 FULL TECHNICAL SPECIFICATIONS

FM tuner section
Tuning range 87.5 MHz to 108 MHz
Usable sensitivity 13.2 dBf
(IHF)
Antenna terminals 75 ohms (unbalanced)
AM tuner section
Tuning range 530 kHz to 1710 kHz (10 kHz step),
531 kHz to 1602 kHz (9 kHz step)
Usable sensitivity 350 µV/m
Antenna Loop antenna
Amplifier section
Power output [Stereo Mode]
Front
100 watts per channel, Min. RMS at 8
ohms, from 40 Hz to 20 kHz, with no
more than 0.9% Total Harmonic
Distortion
[Dolby Digital Surround or Dolby
Pro Logic Mode]
Front
70 watts per channel, Min. RMS at 8
ohms, from 40 Hz to 20 kHz, with no
more than 0.9% Total Harmonic
Distortion
Rear (Surround)
70 watts per channel, Min. RMS at 8
ohms, 1 kHz, with no more than 0.9%
Total Harmonic Distortion
Center
70 watts, Min. RMS at 8 ohms, 1 kHz,
with no more than 0.9% Total
Harmonic Distortion
Total harmonic 0.08 % (50 W, 1 kHz, 8 ohms, Front)
distortion
Inputs AUDIO IN
PHONO: 2.5 mV, adjustable (47
kohms)
VIDEO 1/DVD/MD, VIDEO 2/LD/
TV, VIDEO 3, CD: 300 mV,
adjustable (47 kohms)
TAPE MONITOR: 350 mV,
adjustable (47 kohms)
AUX: 250 mV,
adjustable (47 kohms)
DIGITAL IN
COAXIAL (VIDEO 2):
OPTICAL (VIDEO 1):
accept linear PCM (32 kHz, 44.1
kHz and 48 kHz) signals and bit
stream of Dolby Digital Surround
VIDEO IN: 1 Vp-p (75 ohms)


Outputs AUDIO OUT (REC OUT): 300 mV (1
kohm)
VIDEO OUT (MONITOR): 1 Vp-p (75
ohms)
SUPER WOOFER: 5.0 V
FRONT SPEAKERS IMP: 8Ω (front
speakers A and B): accepts speakers
of 8 ohms or more.
SURROUND SPEAKERS IMP: 8Ω
(surround speakers): accepts
speakers of 8 ohms or more
CENTER SPEAKER IMP: 8Ω: accepts
speaker of 8 ohms or more.
PHONES (stereo jack): accepts
headphones of 32 ohms or more
Muting –20 dB
General
Power requirements 120 V AC, 60 Hz
Power consumption 160 W
Power consumption in ECO OFF: 33.5 W
standby mode ECO ON: 1.3 W
Dimensions 430 × 155 × 392.5 mm
(W × H × D) (17 × 61/8 × 151/2 in.)
Weight 10.2 kg (22 lb 8 oz.)
