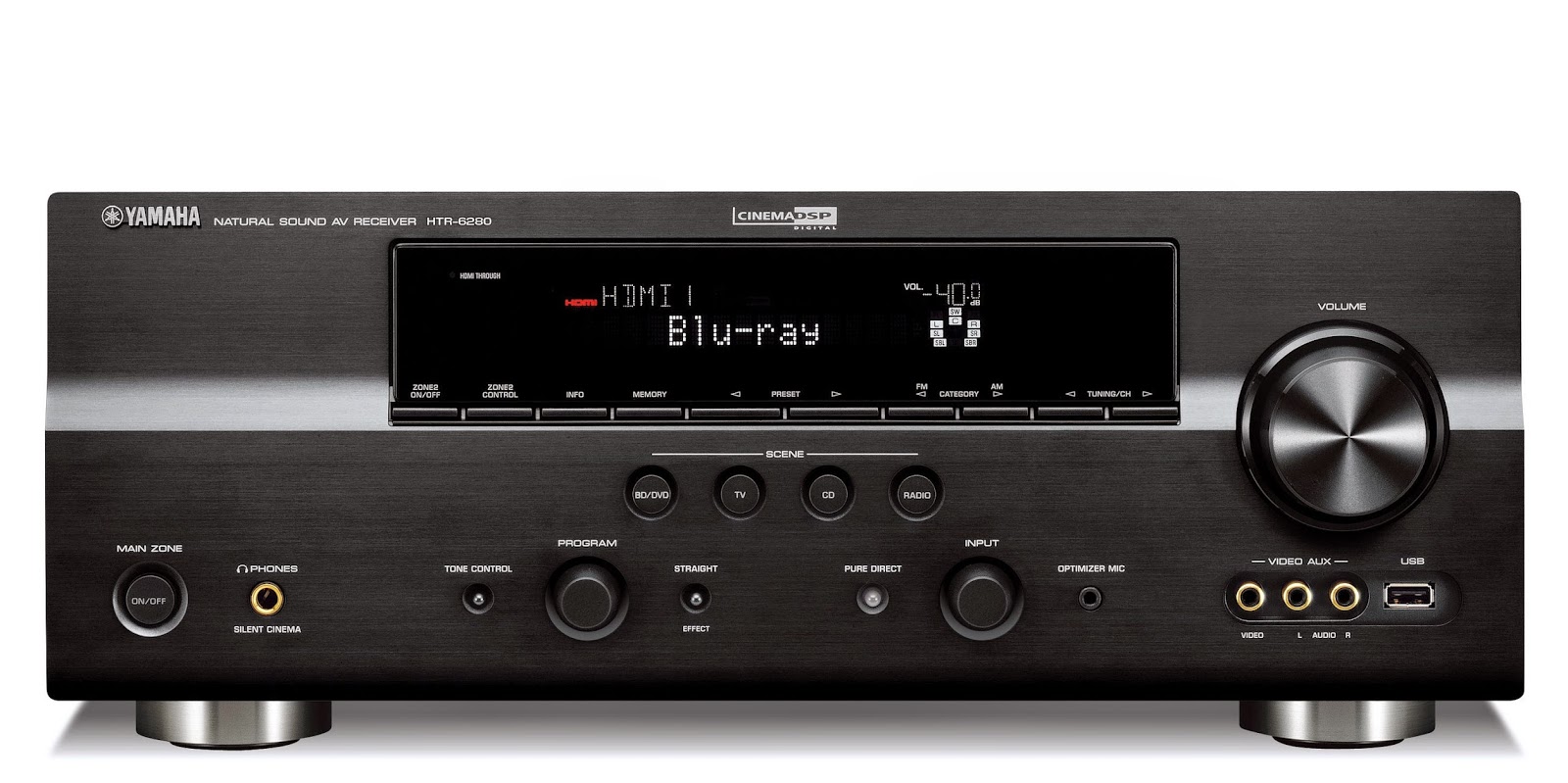

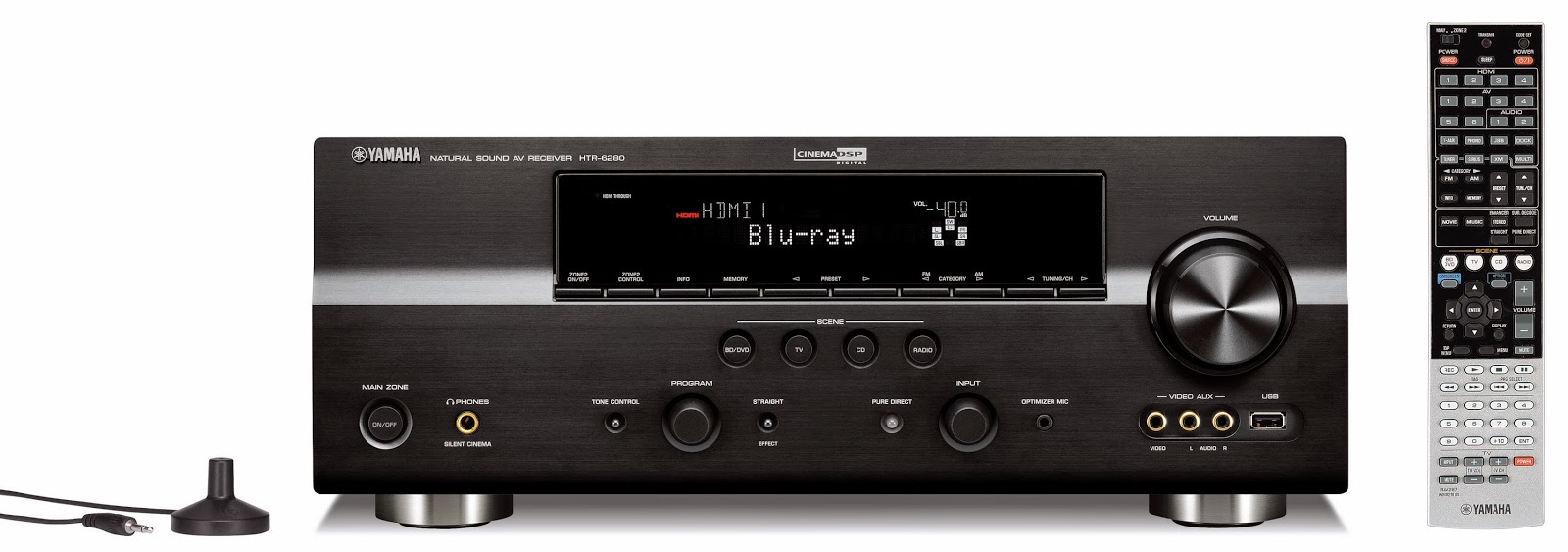

Yamaha HTR-6280 BASIC SPECS
New SCENE buttons (BD/DVD, TV, CD and Radio) - quick and simple to use
YPAO sound optimization for automatic speaker setup HD Radio™ Receiver XM ready with XM HD Surround powered by Neural Surround SIRIUS Satellite Radio ready USB port for portable audio players and flash drives (MSC) iPod compatibility via optional YDS-11 Universal Dock Bluetooth (A2DP) compatibility with optional Yamaha Bluetooth® Wireless Audio Receiver YBA-10 New GUI on-screen display with album art Dialogue Lift iPod song titles displayed in English and Western European languages on the front panel and on-screen display HDMI CEC functionality, HDMI standby through functionality Initial Volume Setting and Maximum Volume Setting Preset remote unit High Picture Quality Analog video upscaling to full HD 1080p with TBC 1080p-compatible HDMI (4 in/1 out) Supports Deep Color (30/36 bit), x.v.Color, 120Hz/24Hz Refresh Rates and Auto Lip-Sync compensation High Sound Quality 7-channel 735W powerful surround sound (105W x 7) Decoders for HD audio formats: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and DTS-HD High Resolution Audio Digital ToP-ART and High Current Amplification with discrete amp configuration Pure Direct Burr-Brown 192 kHz/24-bit DACs for all channels Intelligent Assignable amplifiers for bi-amp or Surround Back Front Presence or Zone 2 connection Surround Realism CINEMA DSP 3D (17 DSP programs) with Adaptive DSP Level Adaptive DRC (Dynamic Range Control) Compressed Music Enhancer SILENT CINEMA and Virtual CINEMA DSP Audio Delay for adjusting Lip-Sync (0-240ms) Versatile Zone Control Zone 2 on/off and control on front panel Remote input/output Programmable +12V trigger output |
Yamaha HTR-6280 TECHNICAL SPECIFICATIONS
| Channels | 7.2 | |
|---|---|---|
| RMS Output Power (20Hz - 20kHz) | 105W x 7 | |
| Total Power (20Hz - 20kHz) | 735W | |
| High Sound Quality | Dolby TrueHD | Yes |
| Dolby Digital EX / Dolby Pro Logic IIx | Yes | |
| DTS-HD Master Audio | Yes | |
| DTS-ES Discrete 6.1 | Yes | |
| Neural Surround | Yes | |
| DTS 96/24 / DTS Neo:6 | Yes | |
| Pure Direct | Yes | |
| D/A Conversion | 192 kHz / 24 bit | |
| Selectable Subwoofer Crossover | Yes | |
| High Picture Quality | Analog Video to HDMI Upconversion | Yes (with upscaling up to 1080p) |
| Time Base Corrector | Yes | |
| Advanced Connections | HDMI (In/Out) | (4 / 1) |
| Component Video (In/Out) | (2 / 1) | |
| A/V Inputs (S-Video) | 4 (Composite) | |
| Front USB Input For Flash Memory Drives | Yes | |
| Pre-Out All Channels | Yes | |
| Multi-Channel Decoder Inputs | 8-Channel | |
| Advanced Features | HD Radio Tuner | Yes |
| iPod Compatibility | Yes (With Optional YDS-11) | |
| Bluetooth Compatibility | Yes (With Optional YBA-10) | |
| Compressed Music Enhancer | Yes | |
| XM HD Surround | Yes | |
| SIRIUS Satellite Radio Ready | Yes | |
| XM Satellite Radio Ready | Yes | |
| HDMI Standby-through | Yes | |
| Dialogue Lift | Yes | |
| Learning Remote Capability | Preset | |
| YPAO (w/Optimizer Microphone) | Yes | |
| On-Screen Display (OSD) | Yes (With new GUI) | |
| Surround Realism | Surround Programs | 17 |
| Custom Features | Assignable Power Amp | Yes |
| Zone Speaker Terminals | Yes | |
| Zone 2 Output | Yes (Audio Only) | |
| Zone Power Switching | Yes [Main/ Zone2 (Front Panel)] | |
| +12V Trigger Output | Yes | |
| IR Inputs/Outputs | Yes | |
| Product Dimensions (W x H x D) | 17-1/8” x 6-3/4” x 14-3/8” | |
| Product Weight (lbs.) | 24.5 | |
| Shipping Dimensions (W x H x D) | 21" x 10-5/8" x 18-1/8" | |
| Shipping Weight (lbs.) | 29 | |
