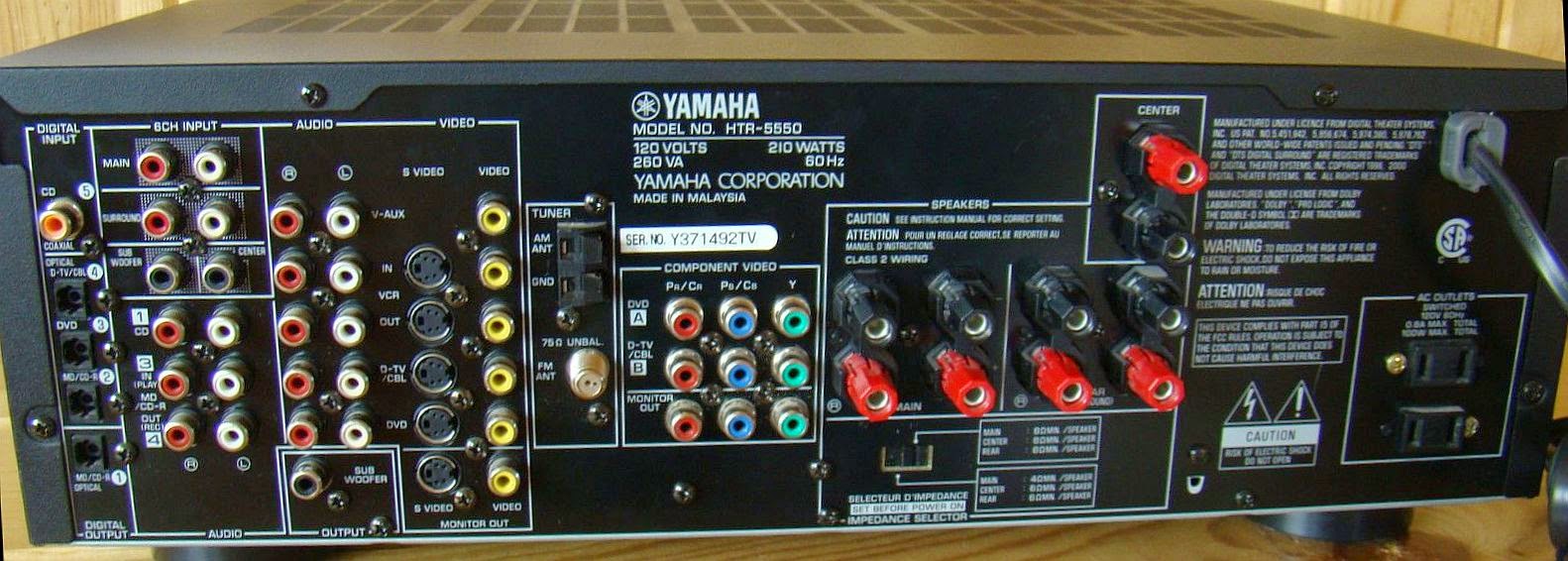

Yamaha HTR-5550 - AV Receiver

CLICK ON THUMBNAIL TO ENLARGE PICTURE

Yamaha HTR-5550 BASIC SPECS

Tuning range: FM, MW

Power output: 75 watts per channel into 8Ω (stereo)

Surround output: 75W (front), 75W (center), 75W (rear)

Frequency response: 10Hz to 100kHz

Total harmonic distortion: 0.06%

Damping factor: 80

Input sensitivity: 150mV (line)

Signal to noise ratio: 100dB (line)

Channel separation: 45dB (line)

Output: 150mV (line)

Digital inputs: coaxial, optical

Video Connections: component, composite, SVHS

Dimensions: 435 x 151 x 387mm

Weight: 10kg

Finish: black, gold, titanium

Accessories: remote control

Yamaha HTR-5550 TECHNICAL SPECIFICATIONS

MAIN, 20Hz-20kHz, 0.06% THD, 8Ω		75W + 75W
CENTER, 20Hz-20kHz, 0.06% THD, 8Ω		75W
REAR, 20Hz-20kHz, 0.06% THD, 8Ω		75W + 75W
MAIN, 1kHz, 0.06% THD, 8Ω		80W + 80W
REAR, 1kHz, 0.06% THD, 8Ω		80W + 80W
MAIN, 8/6/4/2Ω		95/115/140/160W
8Ω		1.2dB
MAIN L/R, 20Hz-20kHz, 8Ω		80 or more
CD, etc		150mV/47kΩ
CD, etc (Effect on)		2.2V
OUT (REC)		150mV/1.2kΩ
Mono		4.0V/1.2kΩ
CD, etc, (40mV, 8Ω)		340mV/560Ω
CD, etc, MAIN L/R		+0/-3.0dB
Boost/Cut		+/-10dB (50Hz)
Turnover Frequency		350Hz
CD, etc, to MAIN SP OUT L/R (1V)		0.06%
CD, etc, Input Shorted (Effect off)		100dB
MAIN, SP OUT		150uV
CD, etc, Input 5.1kΩ		60dB
Video Signal Type		NTSC
Composite Video Signal Level		1Vp-p/75Ω
Y		1Vp-p/75Ϊ
C		0.286Vp-p/75Ω
Cb/Cr		0.7V/75Ω
Video Maximum Input Level		1.5Vp-p
Video Signal-to-Noise Ratio		50dB
Composite Video Signal		5Hz-10MHz, -3dB
S-Video Signal		5Hz-10MHz, -3dB
Component Signal		DC-30MHz, -3dB
Tuning Range		87.5 to 107.9MHz
Mono (1kHz, 100% Mod)		2.0uV (17.3dBf)
Stereo (1kHz, 100% Mod)		25uV (39.2dBf)
Selectivity (400kHz)		70dB
Mono/Stereo (IHF)		76/70dB
Mono/Stereo (1kHz)		0.2./0.3%
1kHz		45dB
20Hz-15kHz		+0.5/-2.0dB
FM 100% Mod. 1kHz		550mV
Antenna Input		75Ω unbalanced
Usable Sensitivity		300uV/m
AM 30% Mod. 1kHz		150mV
