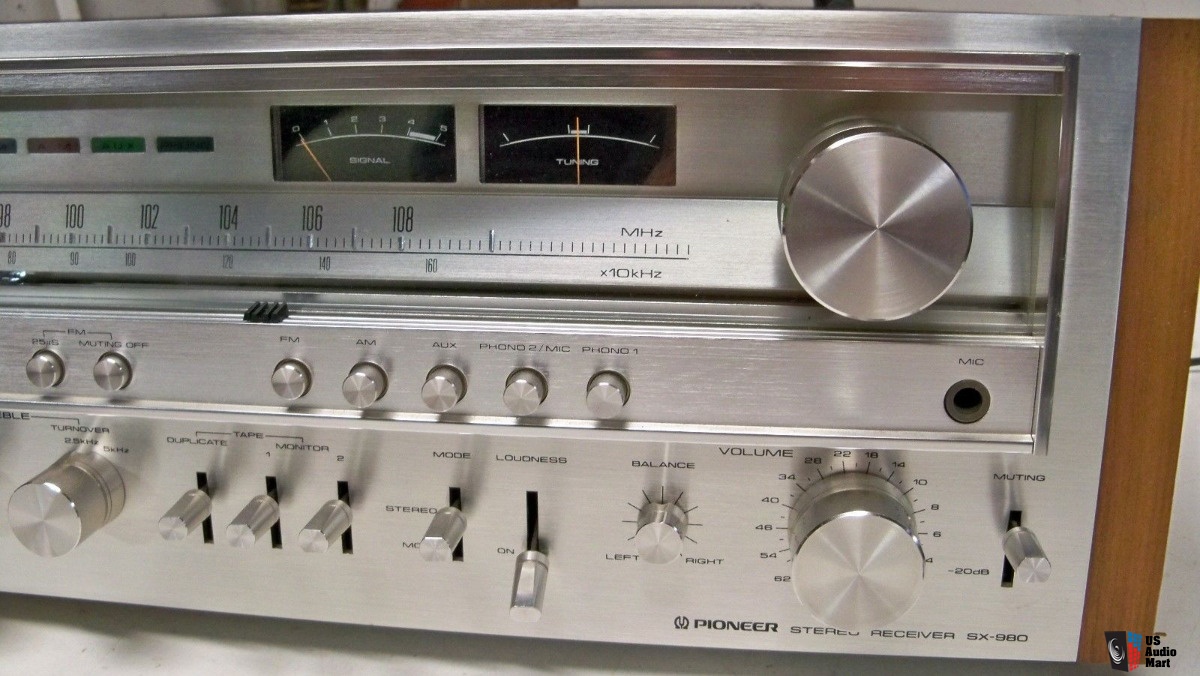

Pioneer SX-980 - Analog Stereo Receiver








BASIC SPECS

Tuning range: FM, MW
Power output: 80 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 100kHz
Total harmonic distortion: 0.05%
Damping factor: 30
Input sensitivity: 7.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 76dB (MM), 90dB (line)
Output: 150mV (line), 30mV (DIN), 1V (Pre out)
Speaker load impedance: 4Ω (minimum)
Semiconductors: 3 x FET, 8 x IC, 35 x transistors, 45 x diodes
Dimensions: 526 x 176 x 440mm
Weight: 18.8kg
Accessories: FM T-type antenna
Year: 1978

CLICK ON THUMBNAIL TO ENLARGE PICTURE




MORE Pioneer SX-980 TECHNICAL SPECIFICATIONS (if available)

No data






Pioneer SX-980 MANUAL FREE DOWNLOAD


  MANUAL PREVIEW (if available)



WHILE MANUAL PREVIEW IS ACTIVE, CLICK BUTTON IN THE UPPER RIGHT CORNER TO SEE FULL SIZE OR DOWNLOAD Pioneer SX-980 MANUAL FREE

DOWNLOAD MORE (if available)

Pioneer SX-980 INFO SHEET
Pioneer SX-980 SERVICE MANUAL




remote control
CLICK THIS BUTTON TO CHECK MODEL NUMBER (OR COMPATIBLE REPLACEMENT)
FOR Pioneer SX-980 REMOTE CONTROL (if applicable)
